Liverpool Bay Carbon Capture Storage M53

Specialist Plant and Equipment Environmental and Sustainability Services
Sector:
Environmental and Renewables
Client:
ENI
Main Contractor:
United Infrastructure
Location:
Liverpool M53

Contact usTo hear about our experiences and how we can help you.

Project Overview

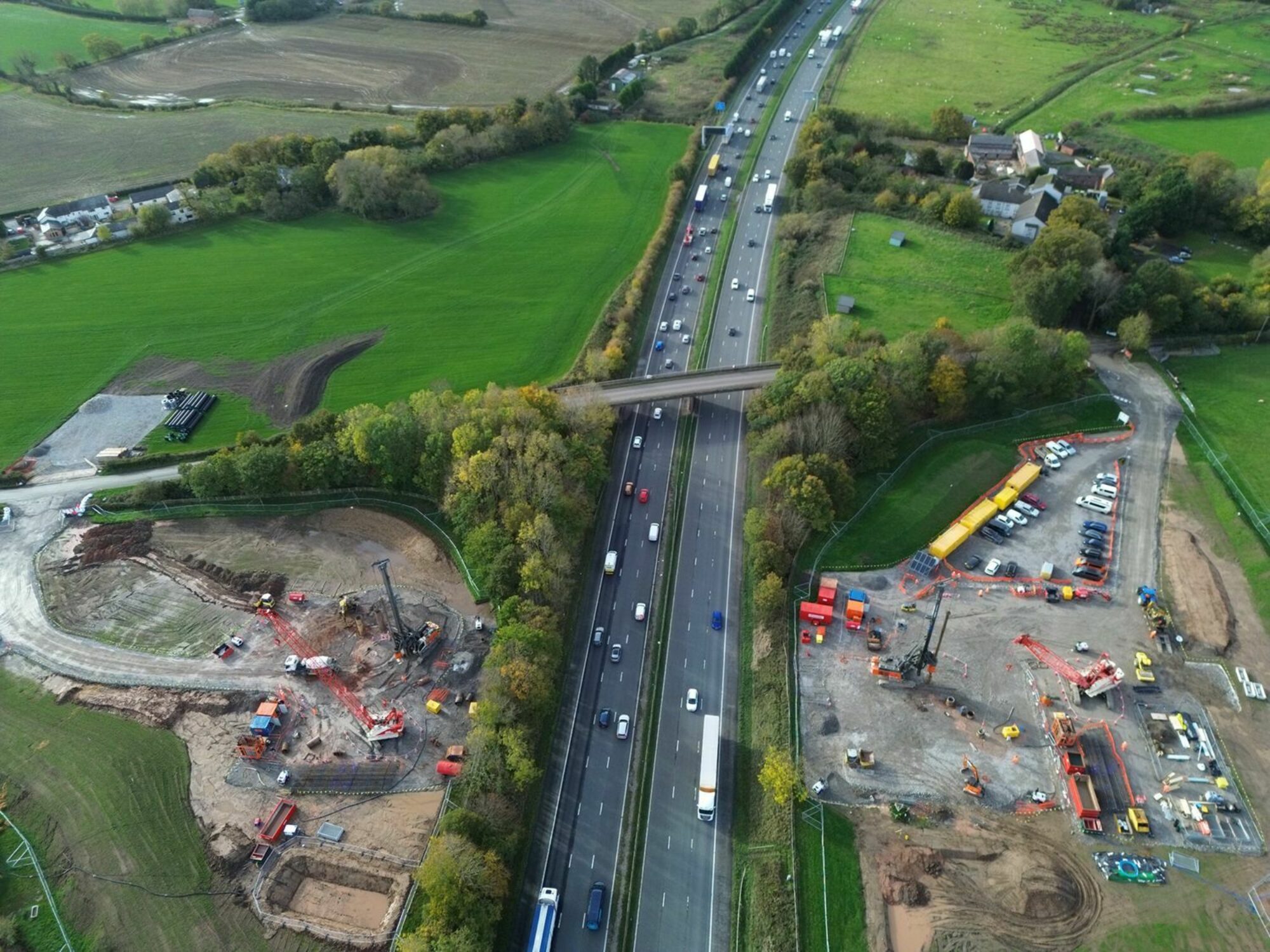

Joseph Gallagher Ltd successfully delivered a 62.5‐metre microtunnelling crossing beneath one of the busiest stretches of the M53 near Chester. Working under 24/7 live-traffic motorway conditions, the team executed the works with zero settlement, no disruption to road users, and an exceptional daily advance rate of approximately 22 metres. Despite challenges around land access and operating beneath critical infrastructure, the works were completed safely, efficiently, and within budget - reinforcing JGL’s reputation for delivering complex trenchless projects with precision and reliability.

JGL at Liverpool Bay Carbon Capture Storage M53

Technical Overview

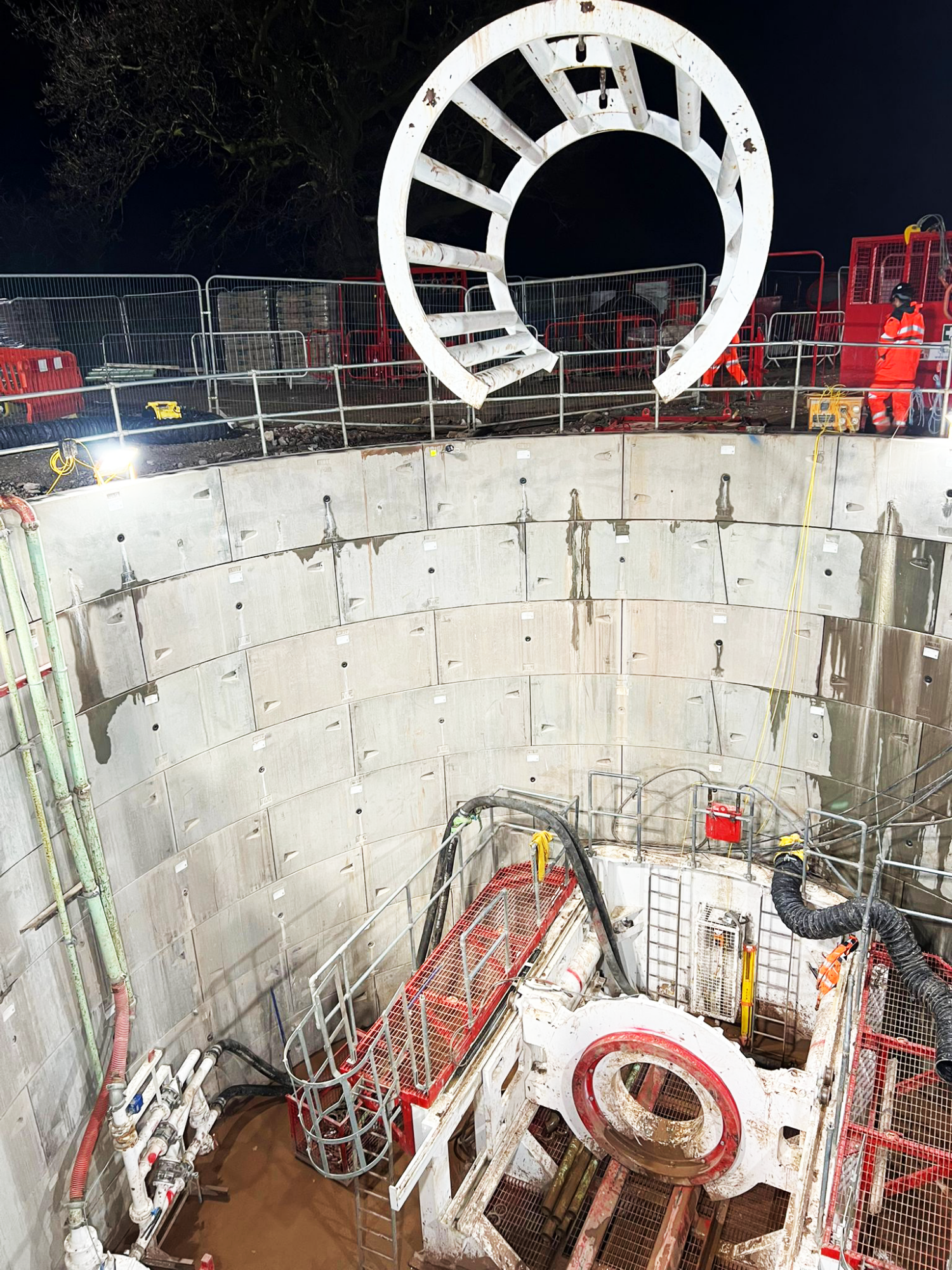

Shaft Diameter: Two shafts each 10.5m (segmental construction)
Launch Pit: 10.5m
Reception Pit: 9.0m
Tunnel Size: ID 1500mm, 62.5m length

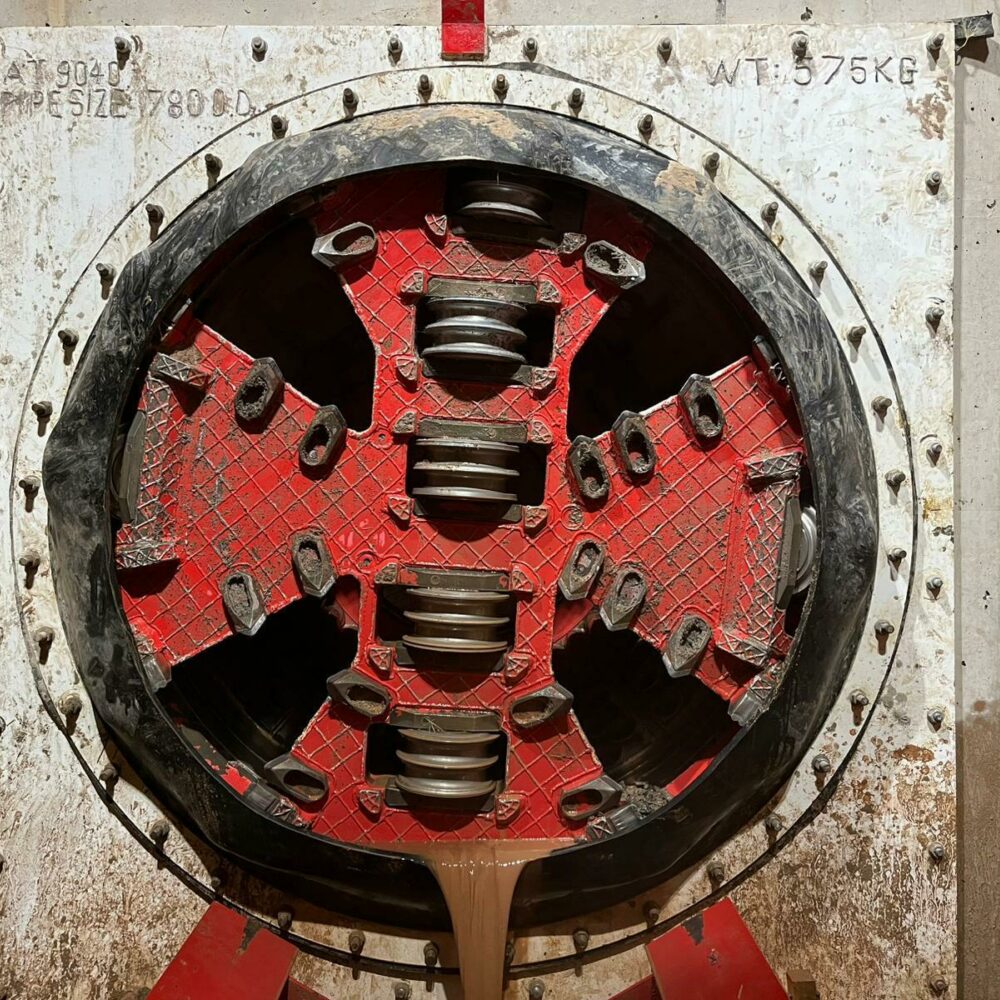

TBM: MTBM – TCC 1450

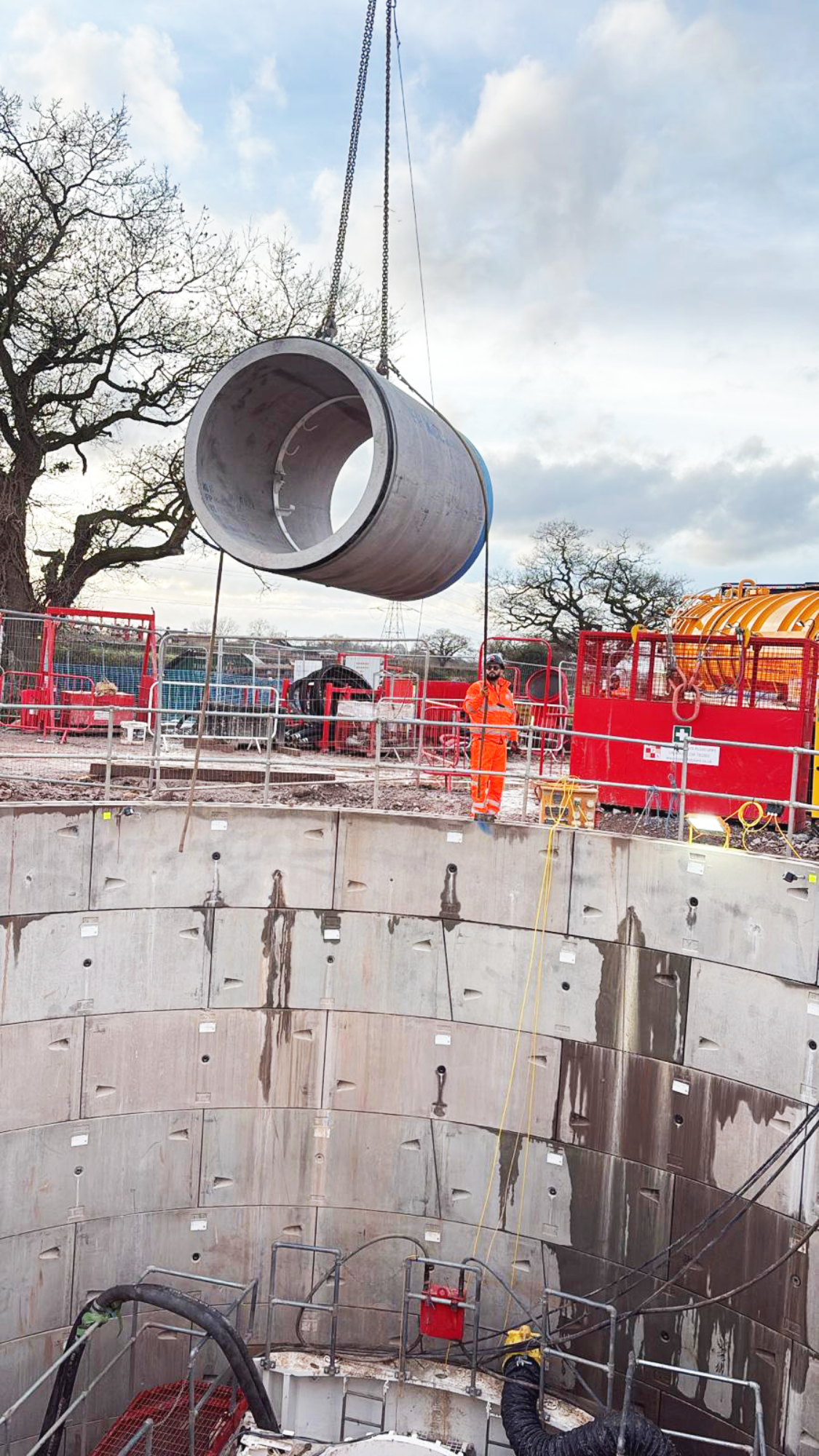

Tunnel Lining: Precast concrete pipe
Ground Conditions: Clay
Concrete Poured: 222m³
Muck Away: 2208.4m³

Services Provided

In-House Engineering & Delivery

  • Design of Temporary Works – JGL Design Team
  • Design of Permanent Works – JGL Design Team
  • Microtunnelling Execution – JGL Delivery Team

This end‐to‐end approach ensured alignment from concept through to construction.

Overcoming the Challenges

Land Access Limitations
Initial programme delays caused by access restrictions were mitigated through proactive planning and close collaboration with the client and landowners.

Live Motorway Conditions
Working beneath a continuously operational motorway required meticulous monitoring, engineering control, and precise tunnelling execution - achieved without any operational impact.

Outcome

JGL successfully delivered a high‐risk, high‐precision microtunnelling project beneath the M53 with zero settlement, no disruption to traffic, and exceptional productivity.

Our integrated design and delivery capability ensured the client received a safe, dependable, and cost‐effective solution - setting a benchmark for complex trenchless installations under critical infrastructure.

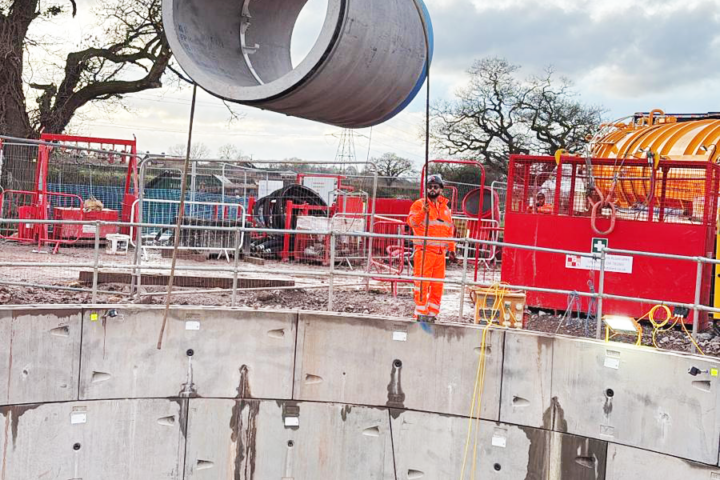

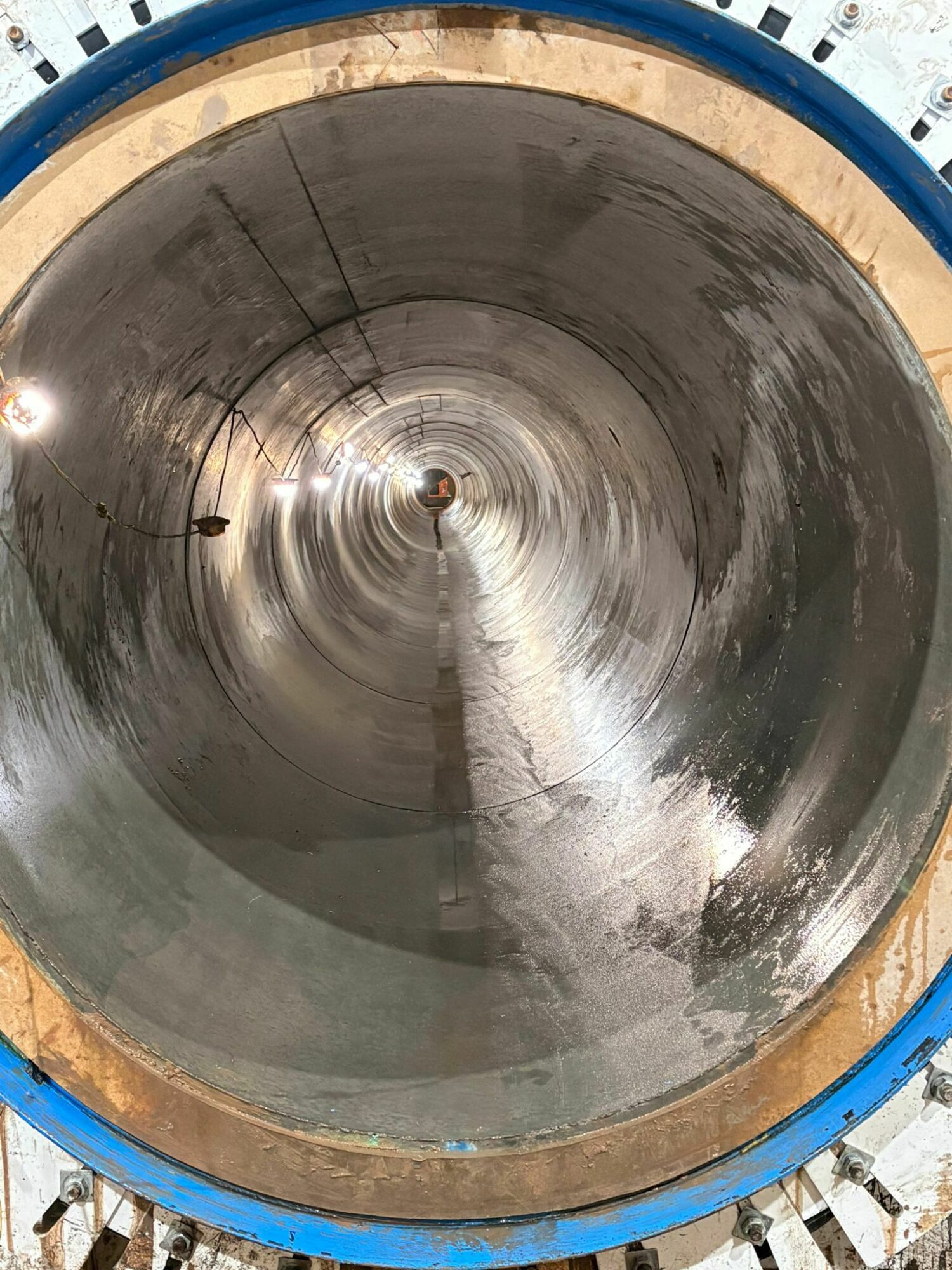

JGL at Liverpool Bay

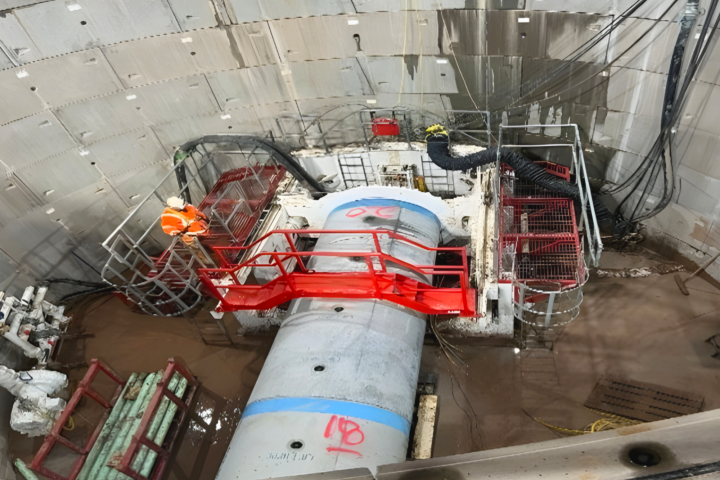

Liverpool Bay

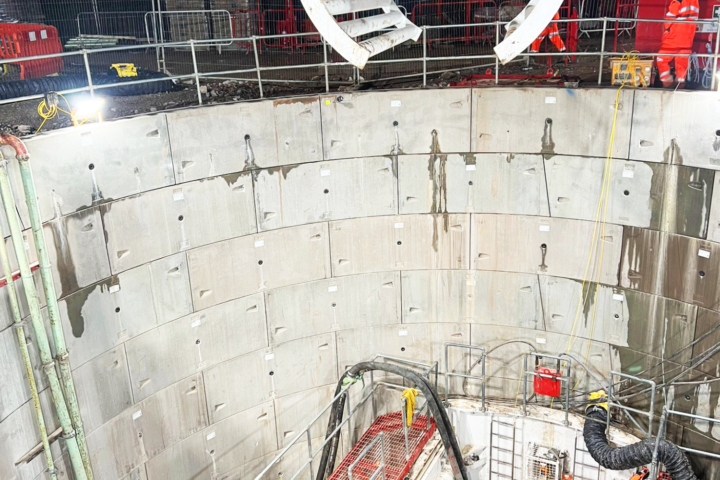

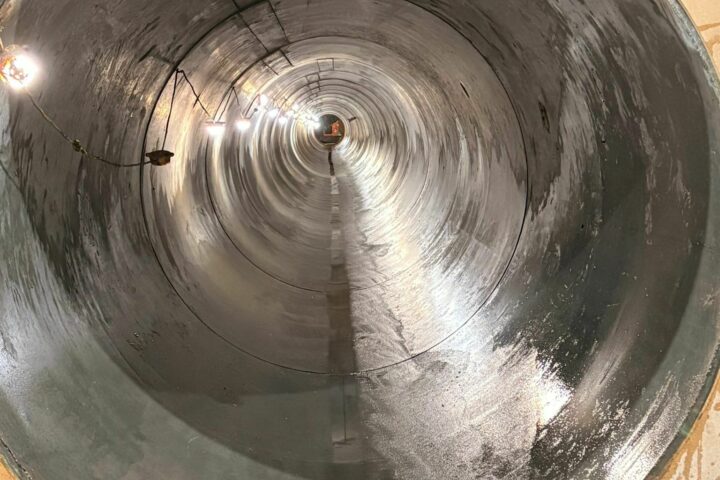

JGL Works at Liverpool Bay
JGL Works
