Project Overview

The South Ruislip Ventilation Shaft (SRVS) is a major HS2 infrastructure project delivering two deep ventilation shafts and a reinforced concrete headhouse within a constrained urban environment adjacent to live railway infrastructure.

The works included deep shaft excavation with groundwater control, extensive in‑situ reinforced concrete construction, permanent waterproofing systems, and complex temporary works. Through detailed planning, innovative construction methods, and close collaboration with stakeholders, the project was delivered safely, on time, and within budget with zero non‑conformities.

Scope of Work

Deep shaft excavation with controlled groundwater management

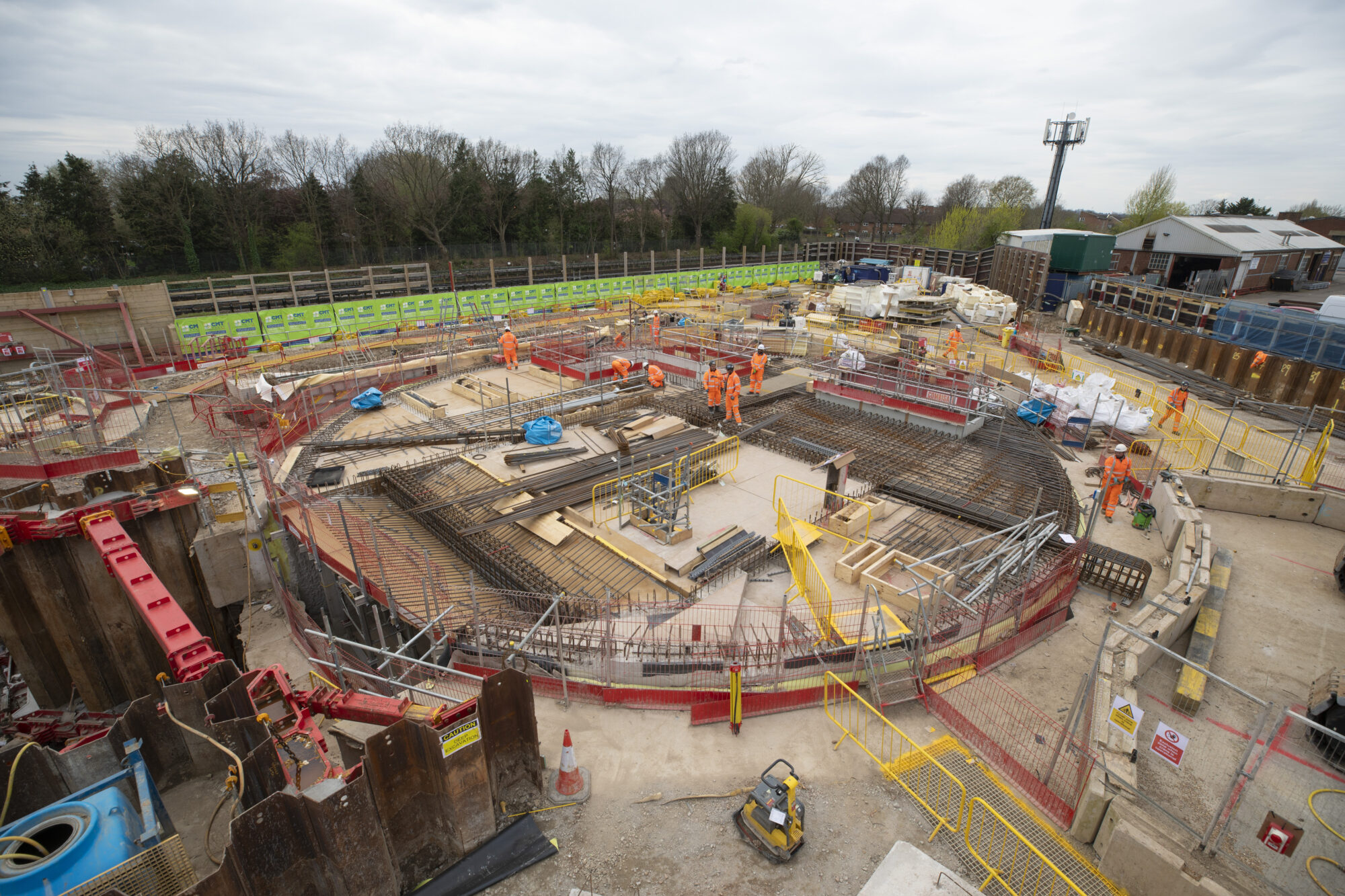

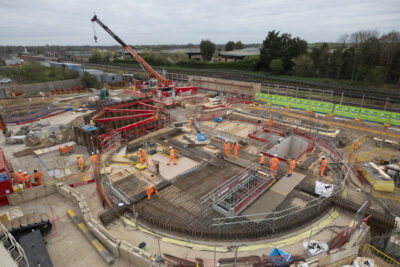

Construction of heavily reinforced base slabs and secondary concrete linings

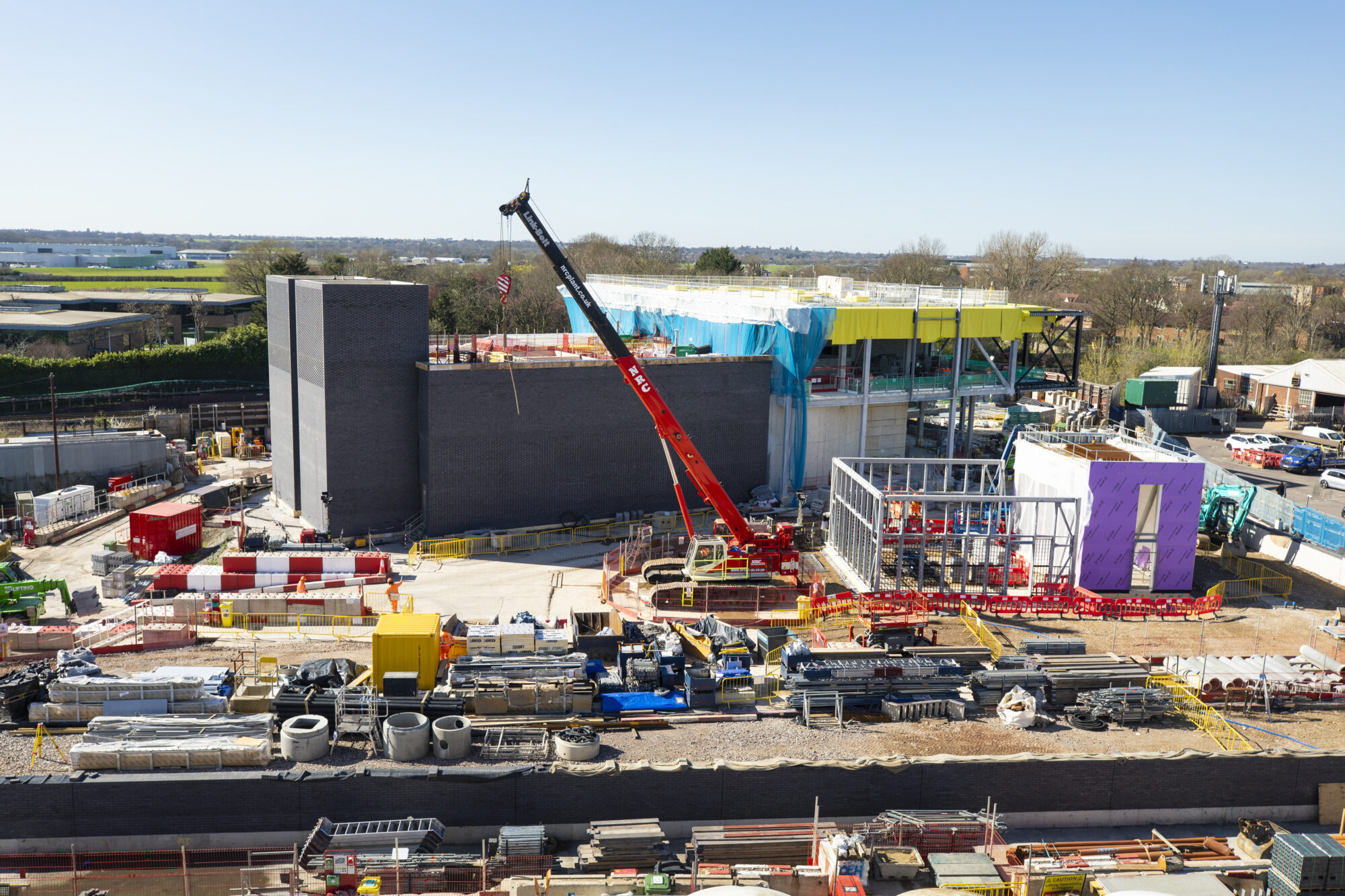

Headhouse construction including slabs, walls, roof, lift and stair cores

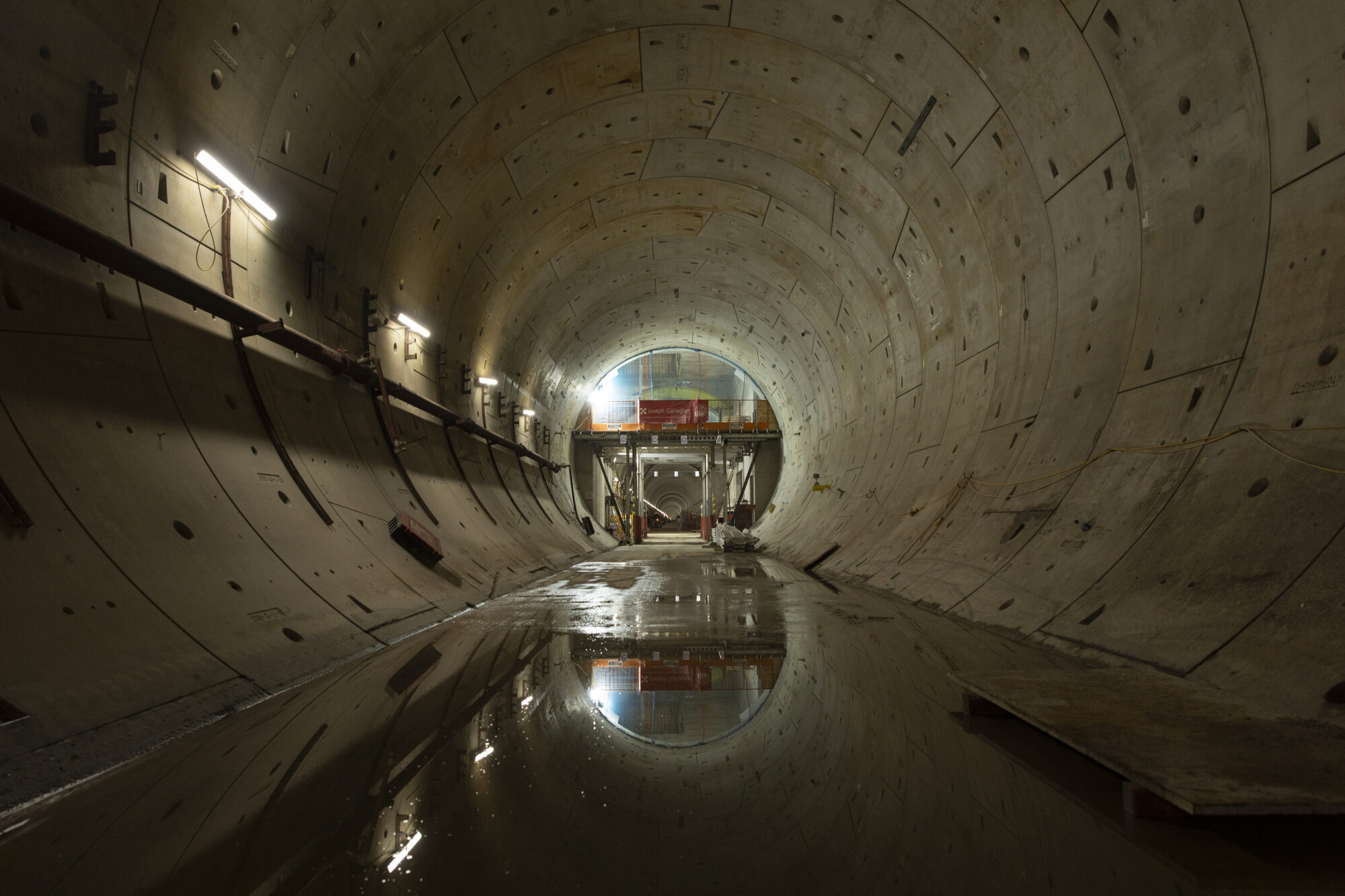

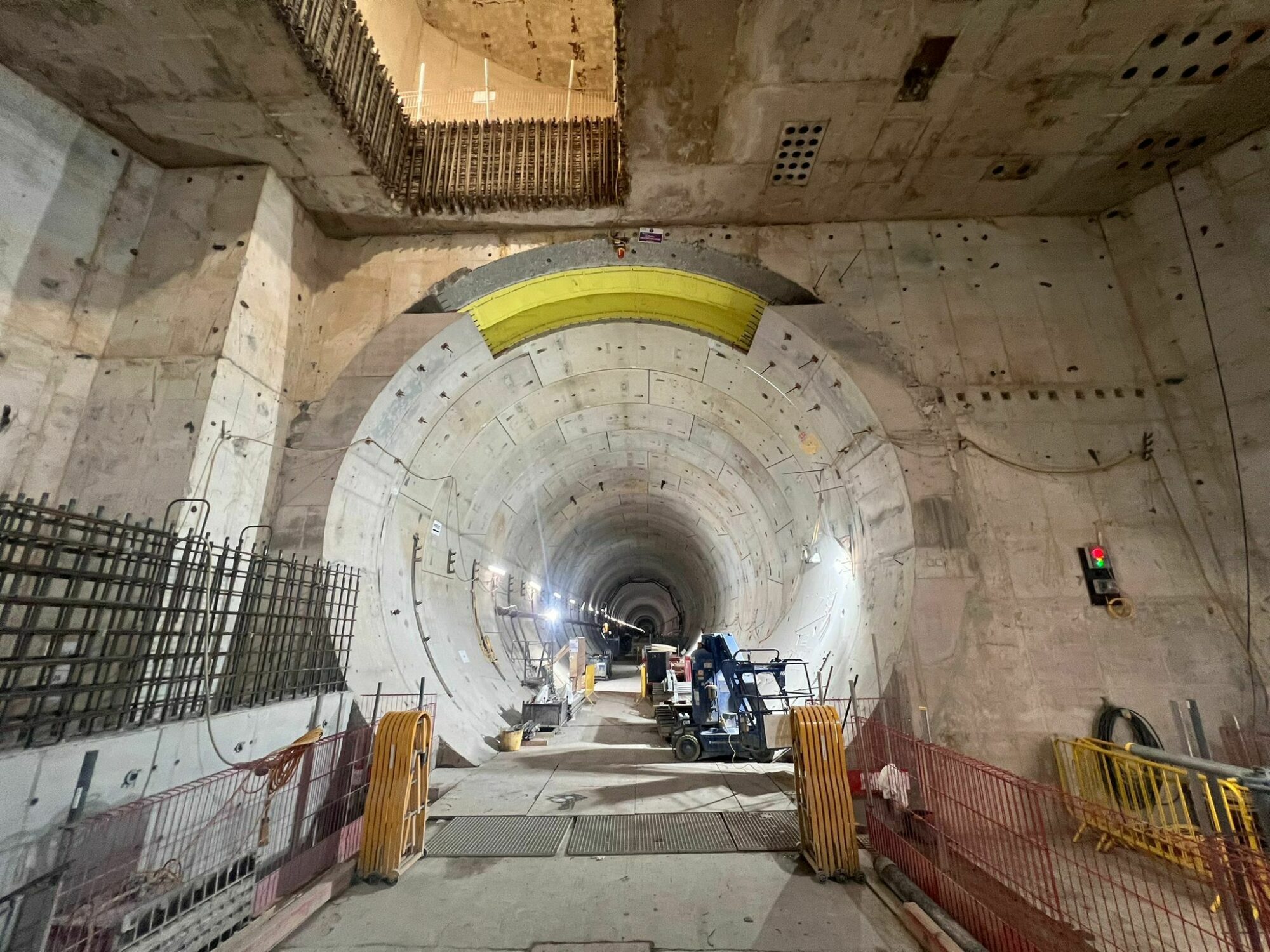

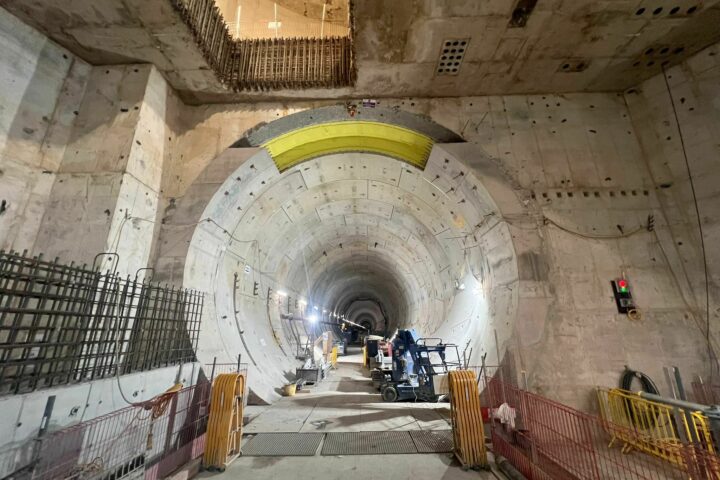

Maintenance adit construction connecting the shafts
Permanent waterproofing and durability systems
Design, installation, and dismantling of all temporary works

Construction Methodology

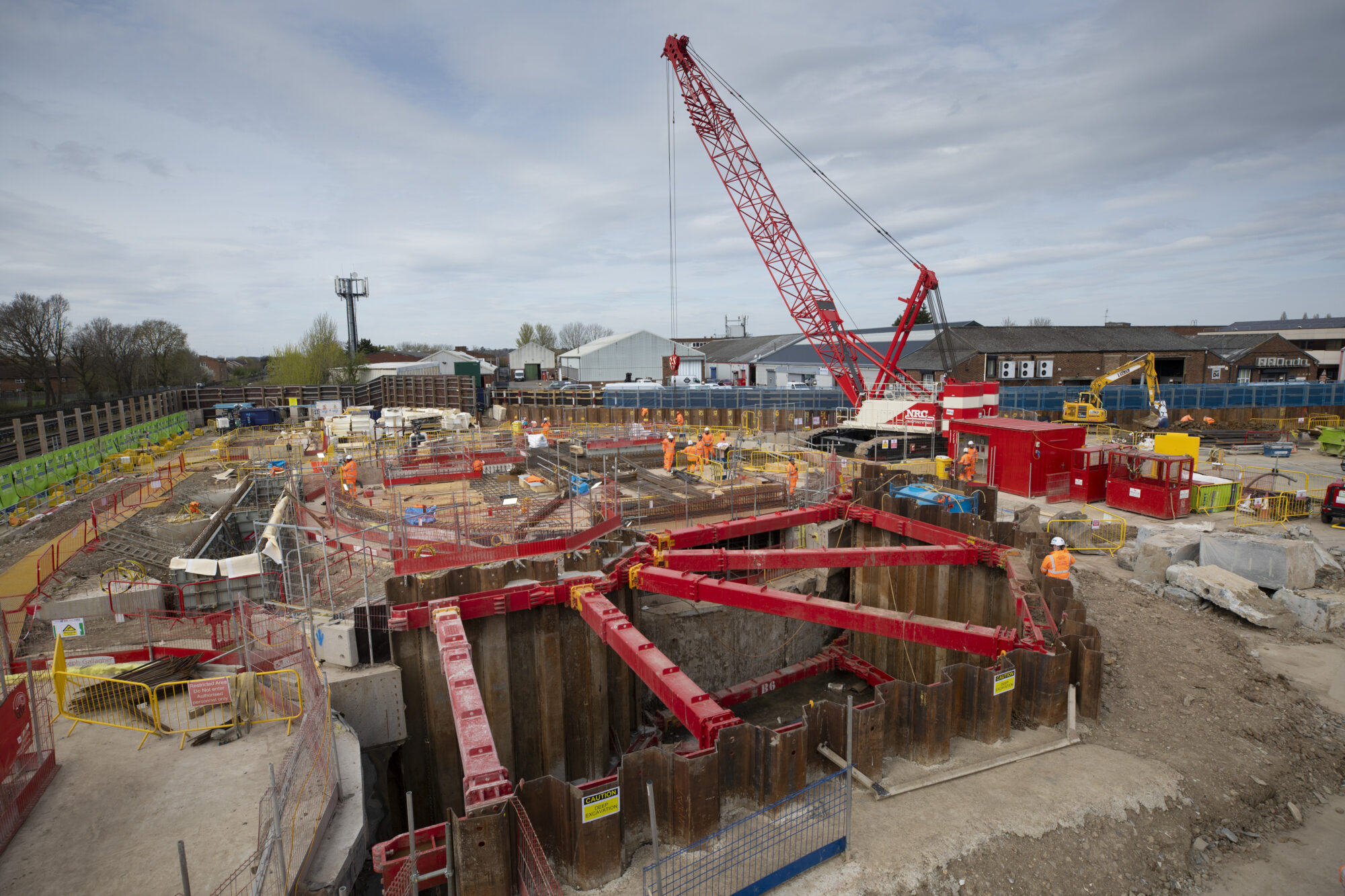

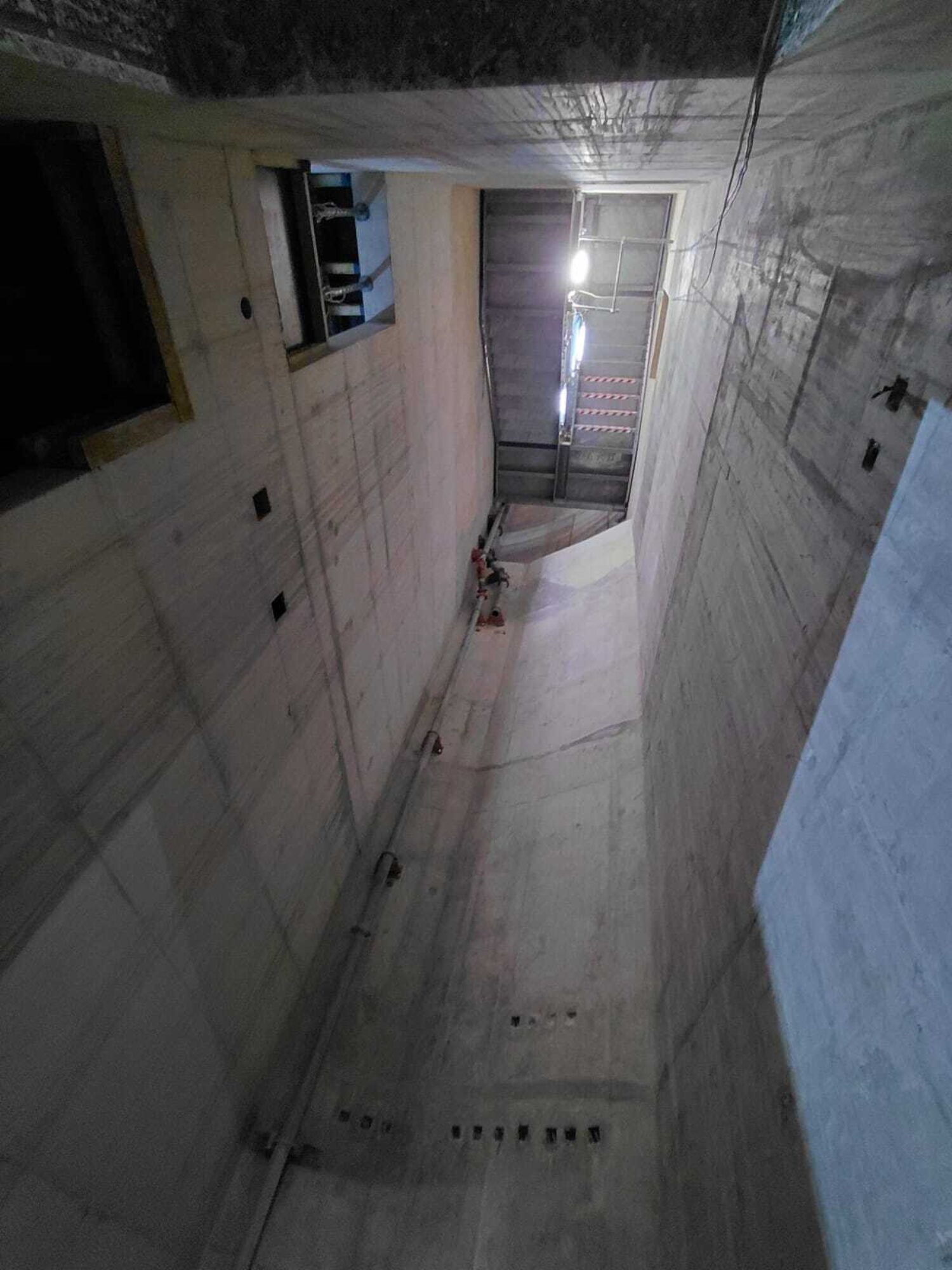

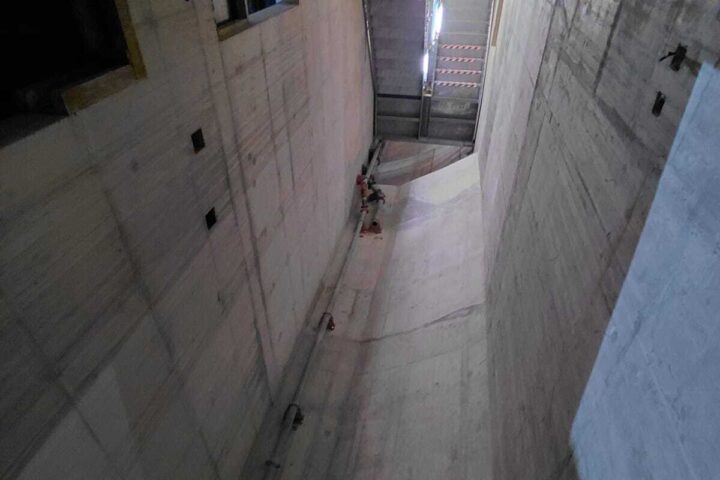

Shaft Excavation & Dewatering
Excavation was undertaken using 5T–22T excavators to suit depth and restricted access. A flexible dewatering strategy with real‑time monitoring maintained full groundwater control throughout the works.

Waterproofing
A full PVC membrane system was installed between the primary and secondary linings, with protective geotextiles and detailed interfaces to ensure long‑term watertightness and durability.

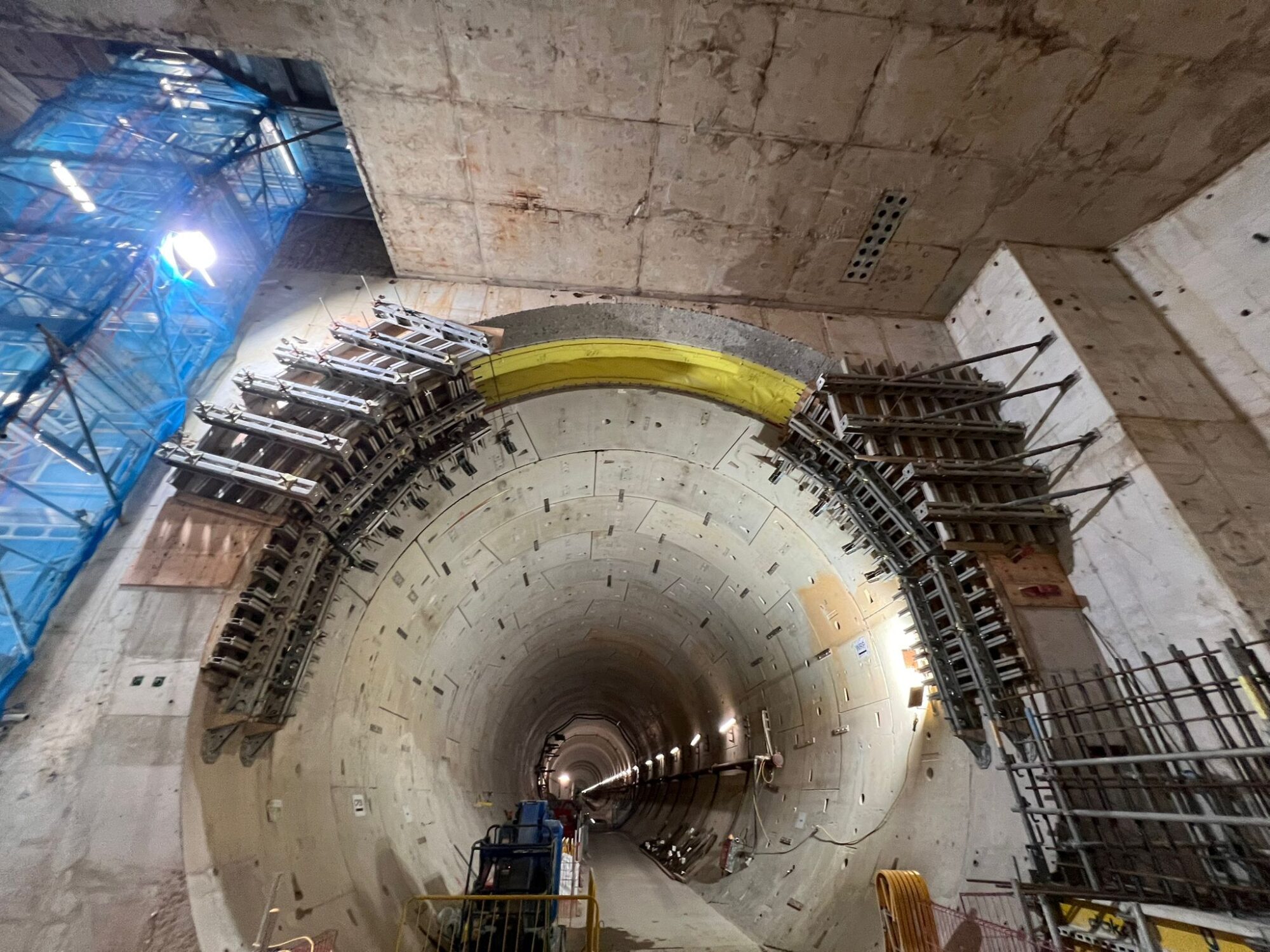

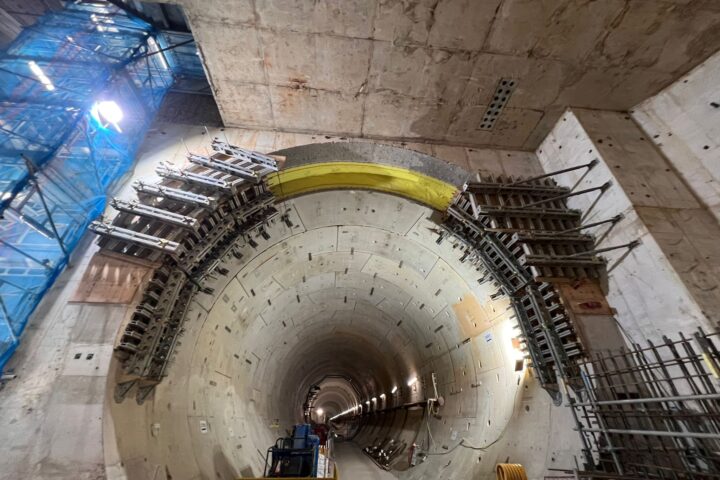

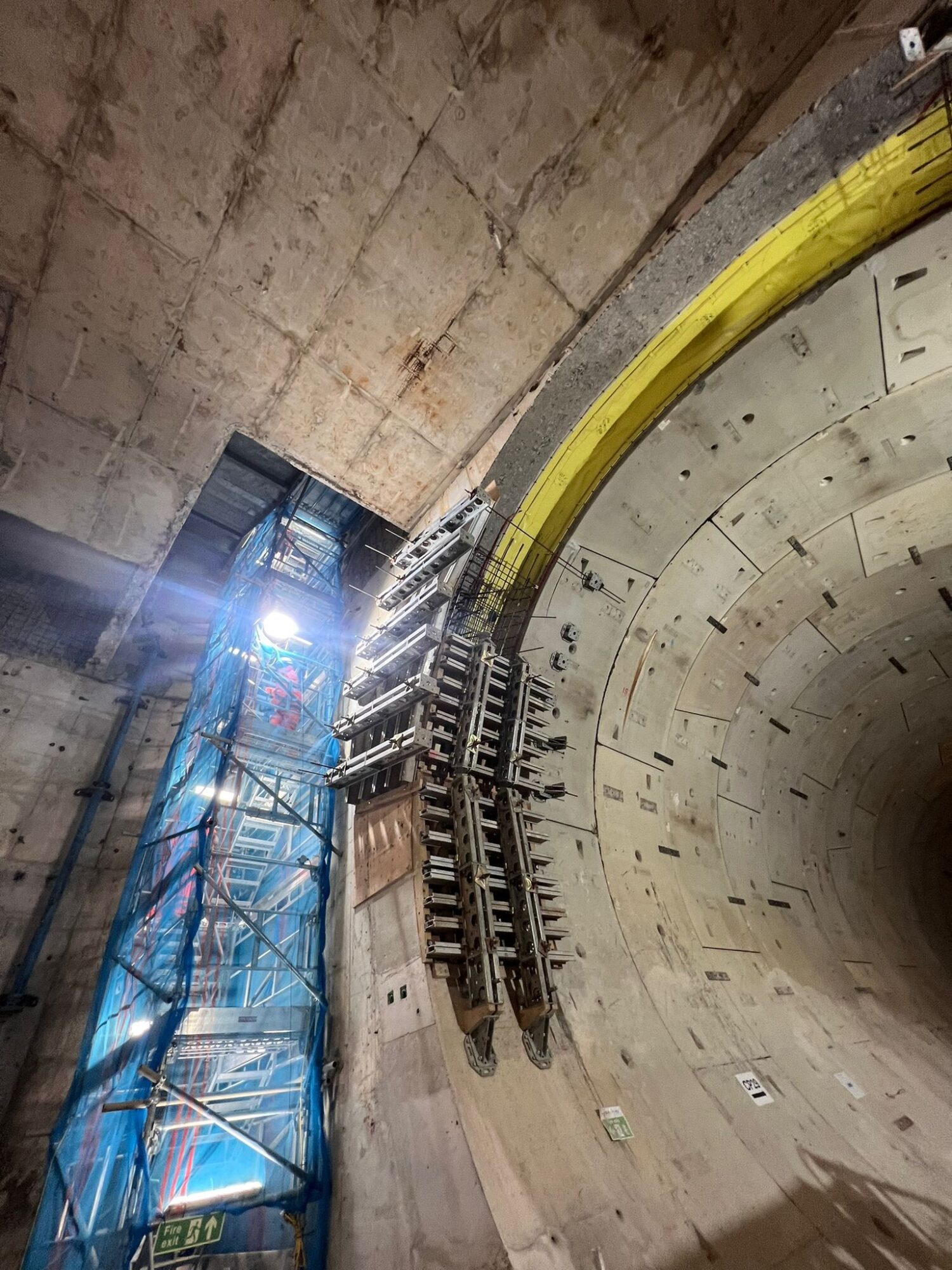

Formwork & Vertical Construction
Vertical elements up to 8.5m high were constructed using jump formwork for cores and floor‑to‑floor reinforced concrete, with single‑ and double‑sided systems selected to suit proximity to diaphragm walls.

Temporary Works

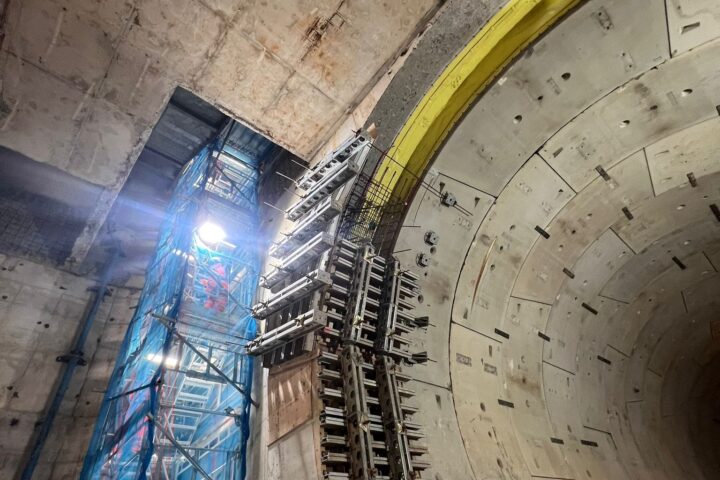

A Titan modular falsework system supported slab pours, working platforms, and suspended headhouse slabs, improving safety, reducing programme duration, and maximising system reuse.

Key Challenges & Solutions

Confined working conditions within deep shafts and restricted access were addressed through detailed sequencing, prefabricated reinforcement cages, and just‑in‑time material deliveries to maintain programme efficiency. Waterproofing integrity during reinforcement fixing and concrete pours was ensured through trained operatives, dedicated supervision, and layered protection, resulting in zero damage and full compliance.
Complex reinforcement detailing at shaft interfaces and base slabs was managed through close collaboration with JGL, enabling accurate detailing, efficient bar schedules, and rapid responses to late design changes.
Safety and work at height risks were mitigated through robust temporary works design, comprehensive edge protection, fall‑prevention systems, and proactive HSE planning, with the project achieving zero major incidents.

Sustainability

Sustainable delivery was embedded throughout the project, with waste segregation and recycling minimising landfill, controlled dewatering using filtration systems, and extensive reuse of formwork and falsework. Just‑in‑time logistics reduced transport emissions, while continuous dust, noise, and vibration monitoring ensured environmental impacts were effectively managed in sensitive areas.

Conclusion

The SRVS project demonstrates the successful delivery of technically complex deep‑shaft infrastructure in a constrained, high‑risk environment. Innovative construction methods, strong collaboration, and uncompromising safety standards ensured a high‑quality outcome and long‑term value for the HS2 network.
